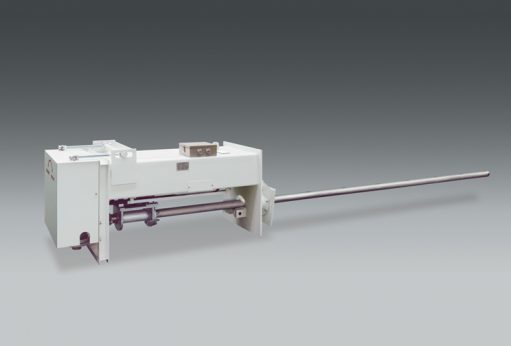

PLR – AH Air Preheater Soot Blower
It is cleaning equipment of Regenerative air heater and it is generally known as part retractable type.
Multi nozzle is installed at lance tube and it becomes strong soot blowing.
Multi nozzle is installed at lance tube and it becomes strong soot blowing.
- Maximize construct stiffness with strong fame of box type.
- Minimize the movement silence and shake by Dual rack and pinion drive.
- Blowing that make forward and backward movement of lance tube with 1 motor.
- Maximize blowing efficiency by applying high efficiency ventri nozzles.
- Low noise operation with an enclosed reducer and carriage.
- Spray pressure control unit in Poppet valve enables to control the nozzle pressure.
- It is convenient for maintenance because each model of poppet valve is in common use.
| Items | Specifications |
|---|---|
| Travel | Up to 3 m |
| Drive Motor | 0.75 Kw |
| Blowing Medium | steam or air |
