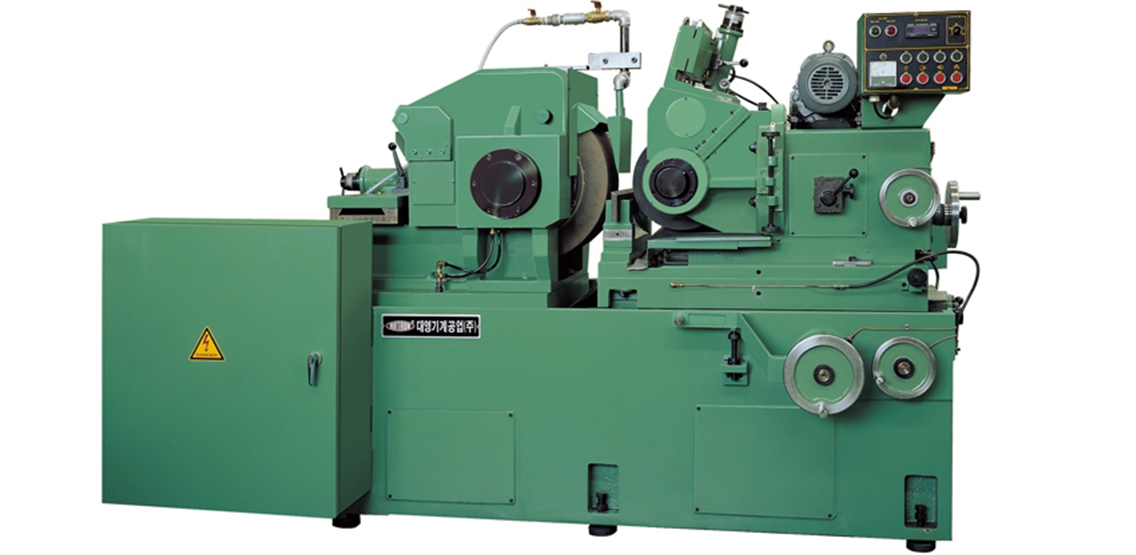

Centerless Grinding Machine
A Center Grinding Machine precisely grinds the outer daimeter of cylindrical material and is used variously across all industrial sectors including automobile, electricity, electronics and appliances. This machine does not support the center of processed goods and develops the grinding process which is different from a cylindrical grinder.

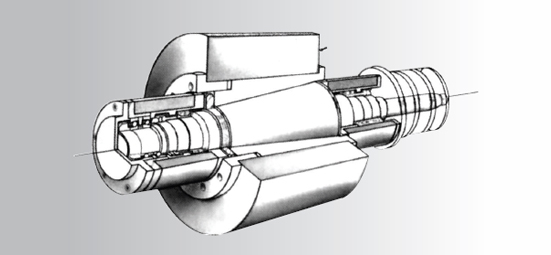

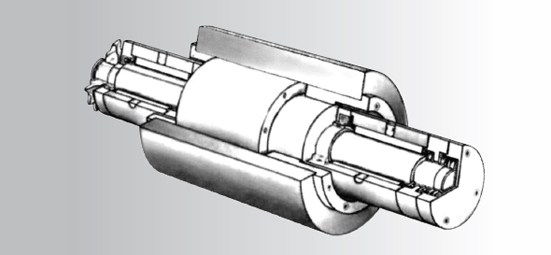

DC-24BG,DC-24BG40 Dual Support Spindle System
Features
- High-precision, high-efficiency, heavy cutting large-scale centerless grinding machine.
- Bed of super-stiffness structure.
- Grinding adjustment, a complete support of both axis.
- Assembling the special precision taper roller bearing and angular ball bearing under optimal pre-pressure.
- Guarantees high precision and long life by adopting a forced spray type of lubrication.
- Enables a precise feeding also for heavy cutting with the use of powerful precision ball screws at the loser slide.
| SPECIFICATIONS |
|---|
| Grinding capacity |
| Grinding wheel(Diameter×Width×Bore) |
| Regulating wheel(Diameter×Width×Bore) |
| R.P.M of grinding wheel |
| R.P.M of regulating wheel |
| Motor for grinding wheel spindle |
| Motor for regulating wheel spindle |
| Tilting Angle of regulating wheel |
| Swivelling Angle of regulating Wheel |
| Floor space(Approx) |
| Net weight(Approx) |
| DC-24BG |
|---|
| Ø2~Ø160mm |
| Ø610×305×Ø304.8mm |
| Ø355×305×Ø203.2mm |
| 1,250 R.P.M. (2,400 m/min) |
| Stepless 10~190 R.P.M |
| 22kw(30HP) |
| 1.5kw(2HP) |
| ±5° |
| ±3° |
| 2,600mm×2,700mm |
| 6,500kg |
| DC-24BG40 |
|---|
| Ø2~Ø160mm |
| Ø610×405×Ø304.8mm |
| Ø355×405×Ø203.2mm |
| 1,250 R.P.M. (2,400 m/min) |
| Stepless 10~190 R.P.M |
| 37kw(50HP) |
| 1.5kw(2HP) |
| ±5° |
| ±3° |
| 2,600mm×2,700mm |
| 7,500kg |
