OTHER COMPONENTS
There are many machines that process various parts. There are two types of machine: Lapping Machine use paper and Superfinishing Machine use stone.
DSF Series Superfinishing Machine (Thrufeed Type)

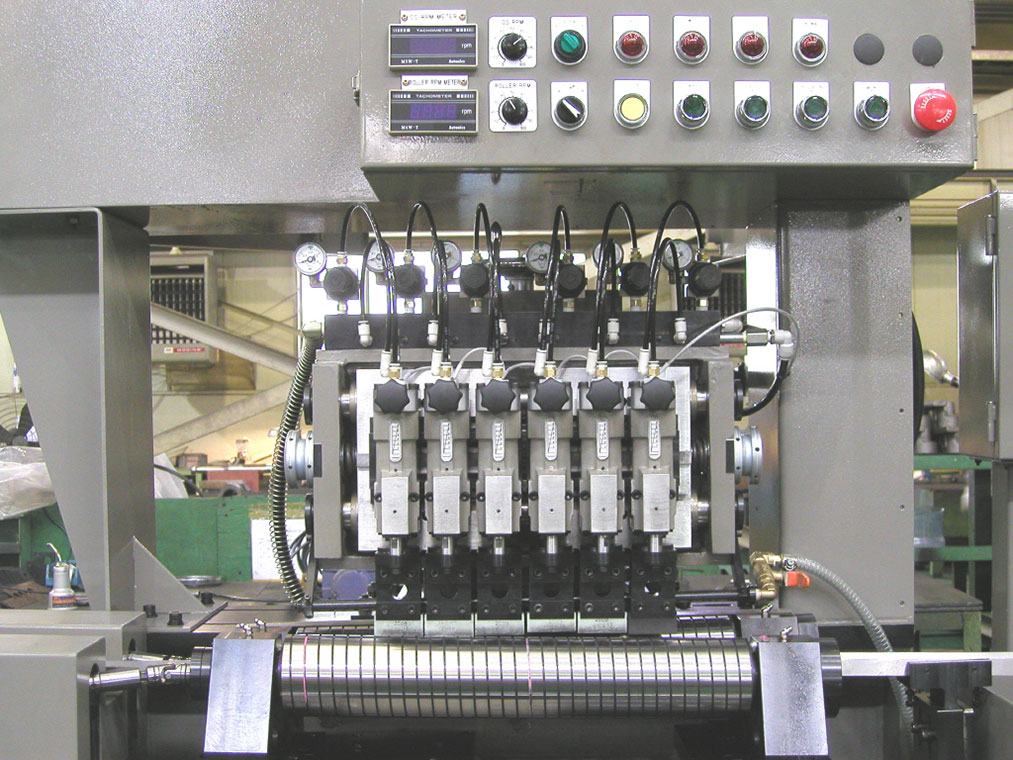

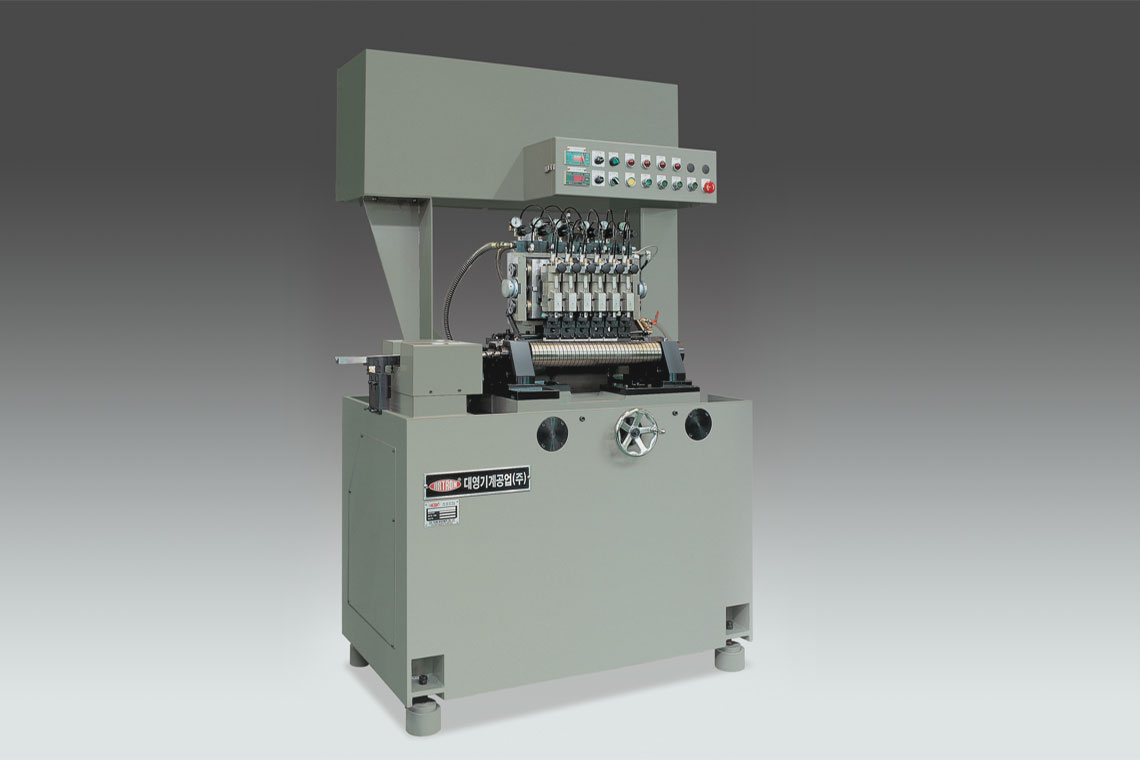

DSF-500

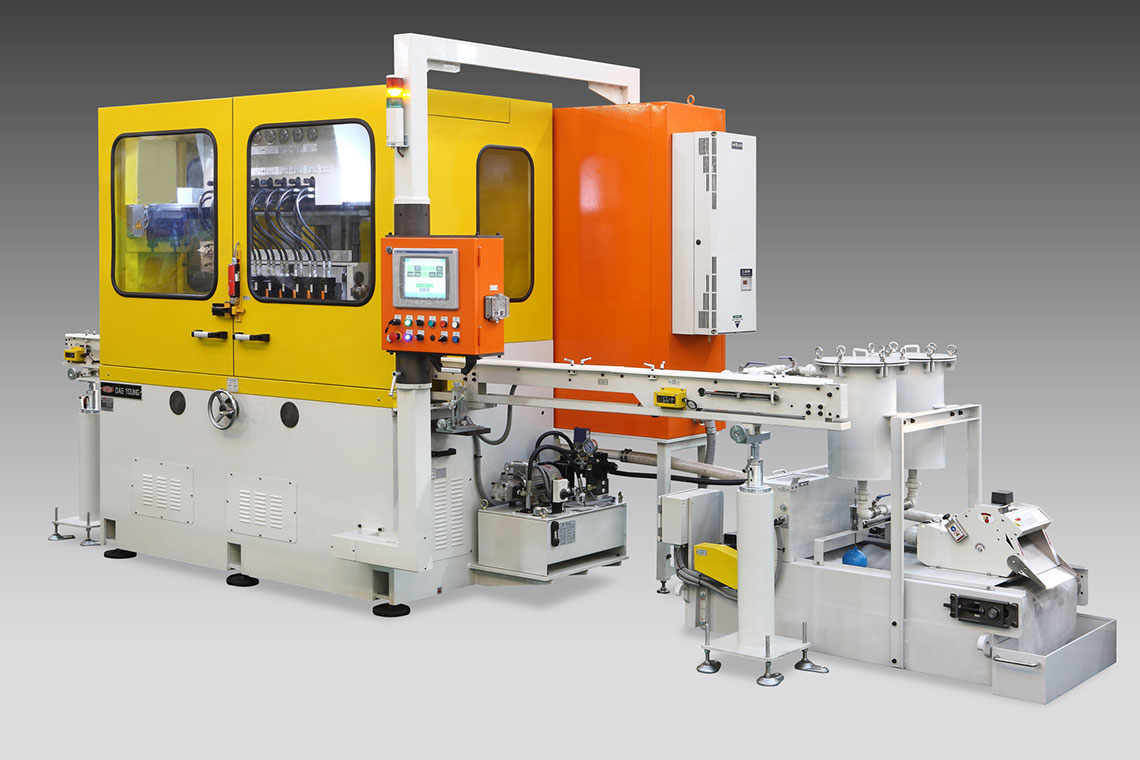

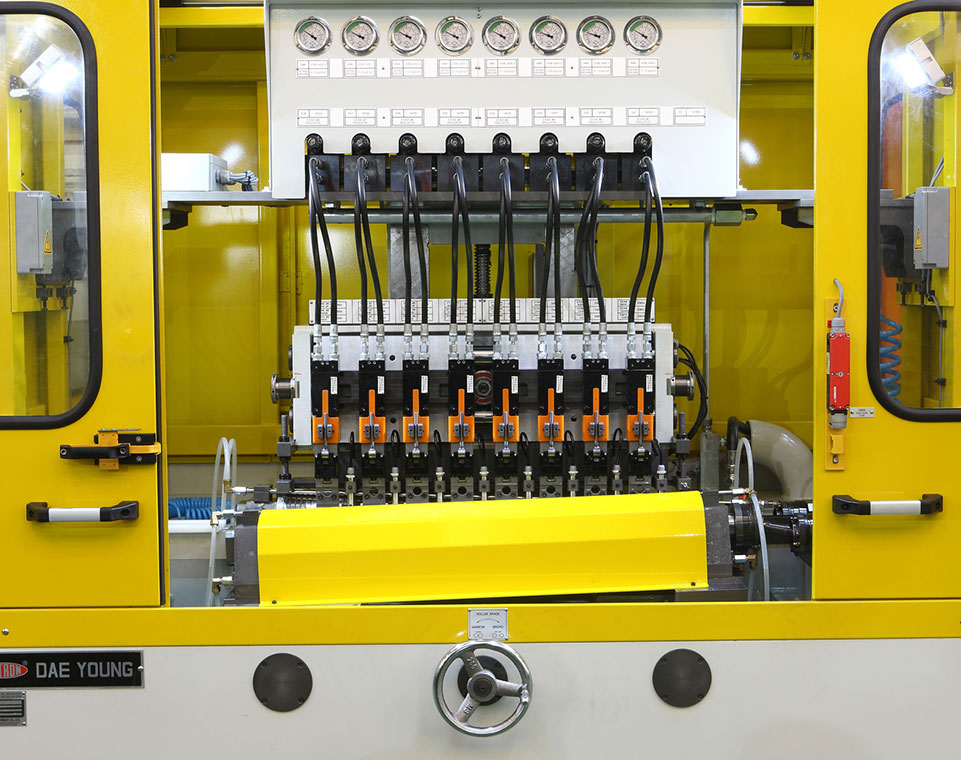

DSF-900
| Division | Item | DSF-500 | DSF-900 |
|---|---|---|---|

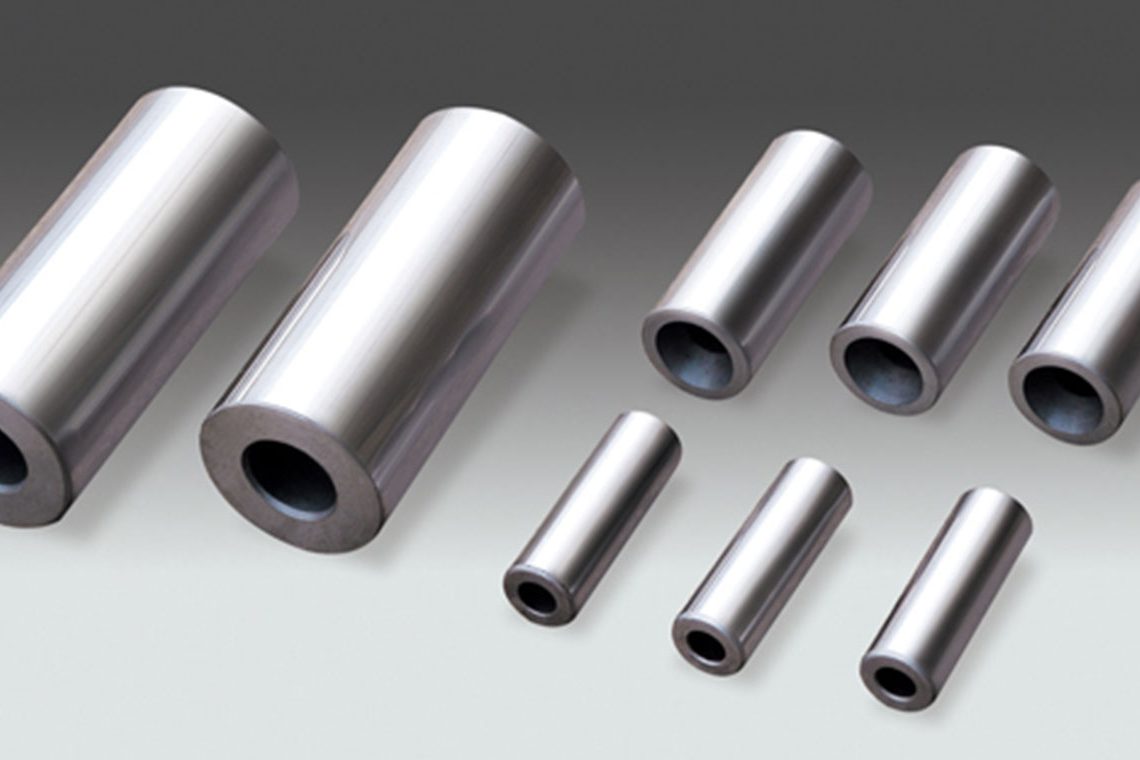

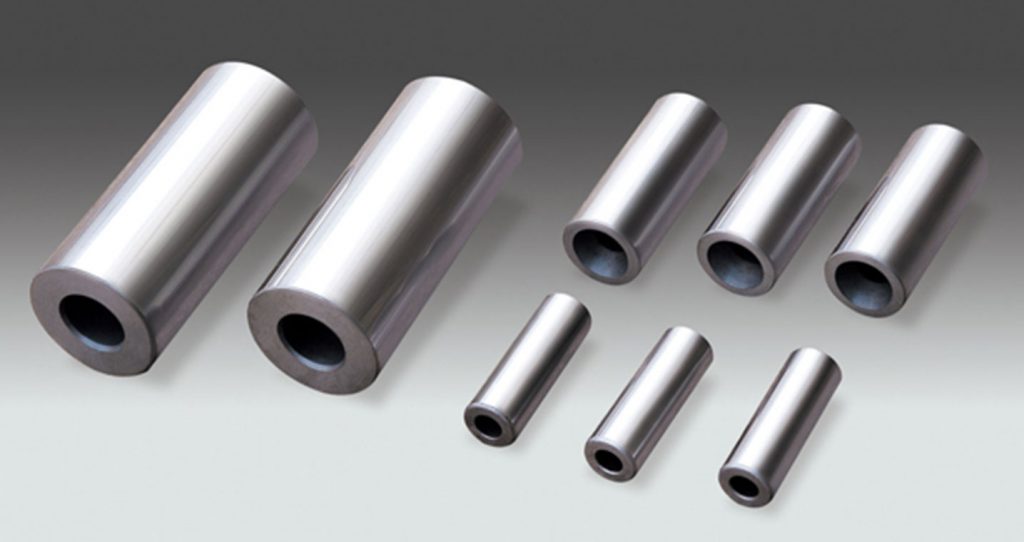

| Workpieces | OD (mm) | Ø8 ~ Ø40 | Ø8 ~ Ø40 |
| Length (mm) | 100 ~ 640 | 100 ~ 640 | |
| Ra(㎛) | 0.05 | 0.05 | |
| Facilities | Stone Guide Type | Air Type | Hydraulic Type |
| Coolant Oil | Non-soluble oil | Non-soluble oil | |
| Oscillation | Type | Motor | Motor |
| Support | Air Bearing | Ball Strocke | |
| Stroke (mm) | 1 (1.5, 2) | 1 (1.5, 2) | |
| FPM | 1100 ~ 2500 | 450 ~ 2500 | |
| Roller | OD (mm) | 90 | 125 |
| Length (mm) | 500 | 900 | |
| Traversing angle(°) | 1 | 2 | |
| RPM | 100 ~ 400 | 100 ~ 450 |
