Centerless Grinding Machine
A Center Grinding Machine precisely grinds the outer daimeter of cylindrical material and is used variously across all industrial sectors including automobile, electricity, electronics and appliances. This machine does not support the center of processed goods and develops the grinding process which is different from a cylindrical grinder.

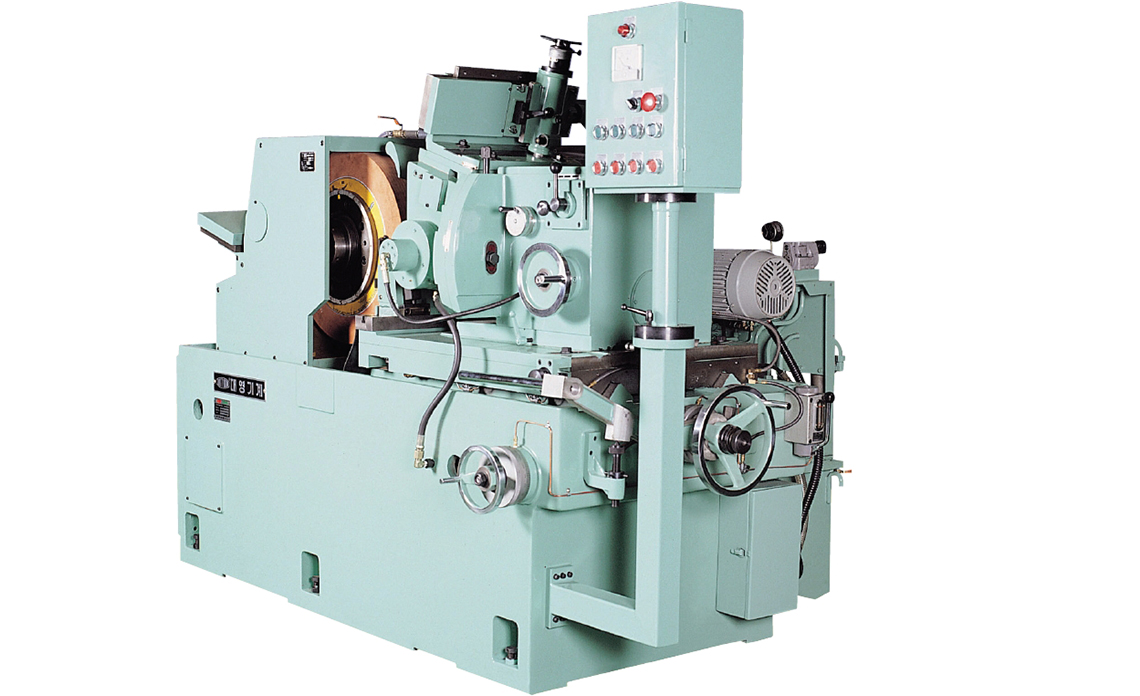

DC-24HS,DC-24HS25 HYDROSTATIC BEARING TYPE
Features
- Super-precision, high-speed grinding machines.
- Use of hydrostatic bearings.
- High-speed grinding- enhanced grinding wheel speed of 2,700m/min.
- Precision grinding- excellent bearing stiffness and high level of rotation.
- Heavy grinding- excellent axial stiffness to be effective also for heavy grinding.
Use of hydrostatic bearings
- When oil under fixed pressure is supplied to the oil pocket of a hydrostatic bearing arrayed around the shaft, the shaft is positioned at the center of the axis by the oil pressure.
- Excellent in ability to maintaining the axis at the center against the external load
- Powerful axial stiffness and excellent degree of rotation.
- No shaft wear because shaft and bearing do not come into contact.
| SPECIFICATIONS |
|---|
| Grinding capacity |
| Grinding wheel(Diameter×Width×Bore) |
| Regulating wheel(Diameter×Width×Bore) |
| R.P.M of grinding wheel |
| R.P.M of regulating wheel |
| Motor for grinding wheel spindle |
| Motor for regulating wheel spindle |
| Tilting Angle of regulating wheel |
| Swivelling Angle of regulating Wheel |
| Floor space(Approx) |
| Net weight(Approx) |
| DC-24HS |
|---|
| Ø2~Ø100mm |
| Ø610×205×Ø304.8mm |
| Ø355×205×Ø177.8mm |
| 1,400 R.P.M. (2,700 m/min) |
| Stepless 10~190 R.P.M |
| 15kw(20HP) |
| 1.5kw(2HP) |
| ±5° |
| ±3° |
| 2,700mm×2,600mm |
| 4,500kg |
| DC-24HS25 |
|---|
| Ø2~Ø100mm |
| Ø610×255×Ø304.8mm |
| Ø355×255×Ø177.8mm |
| 1,400 R.P.M. (2,700 m/min) |
| Stepless 10~190 R.P.M |
| 15kw(20HP) |
| 1.5kw(2HP) |
| ±5° |
| ±3° |
| 2,700mm×2,600mm |
| 5,000kg |
