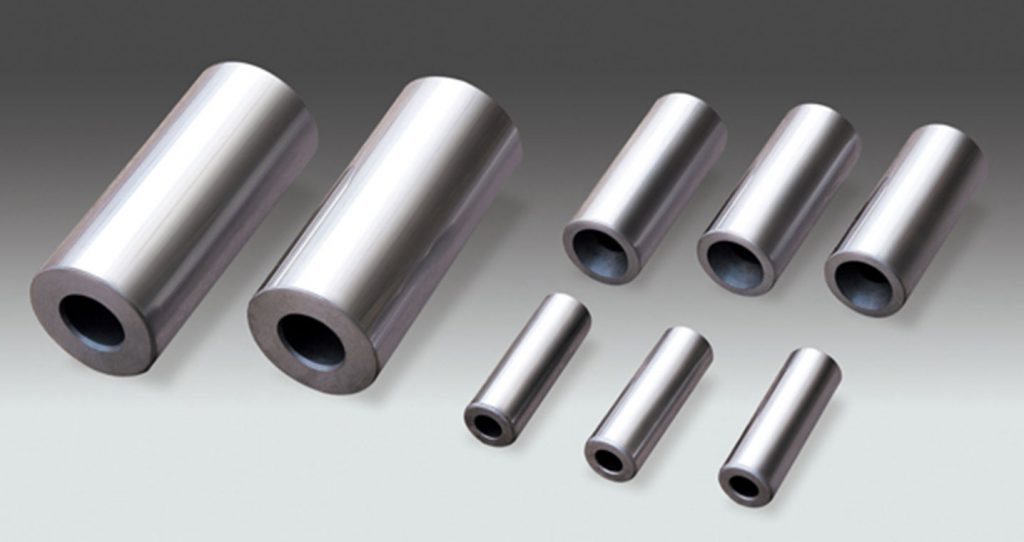

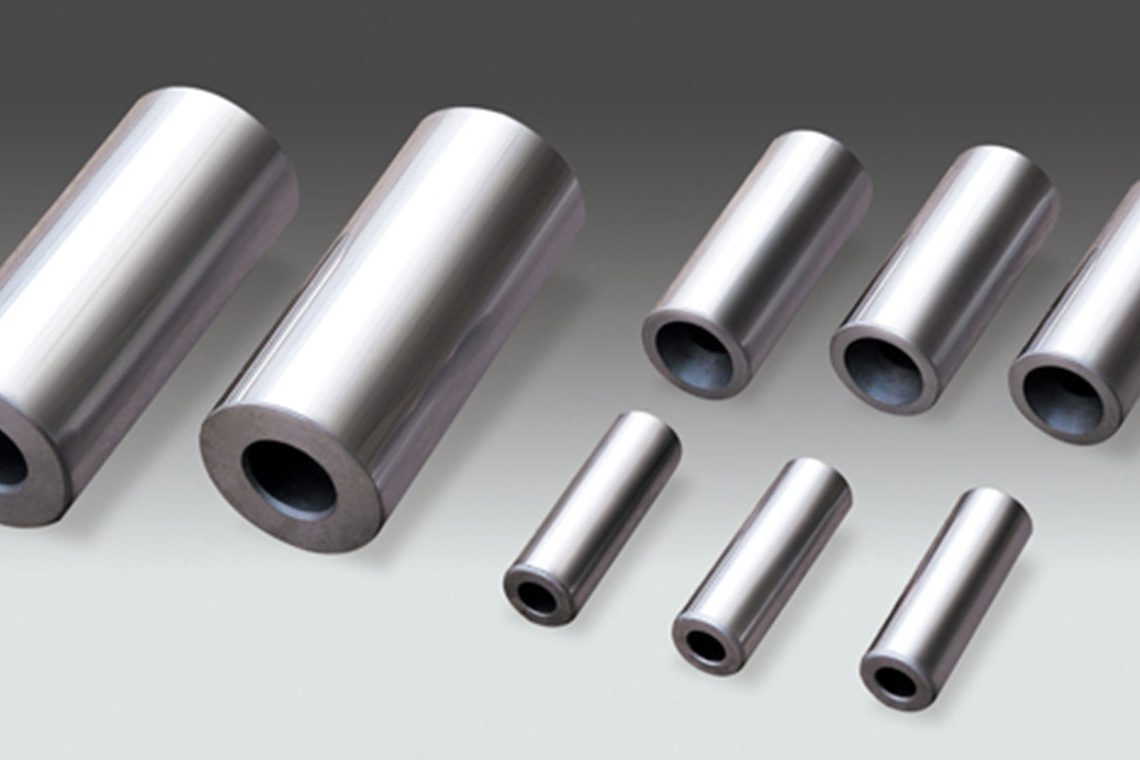

トランスミッションの部品を加工する機械は様々な種類がある。 大きく二種類に分かれており、ペーパーで加工するラッピング・マシンと砥石で加工するスーパー・フィニッシング・マシンがある。
DSF Series Superfinishing Machine (Thrufeed Type)

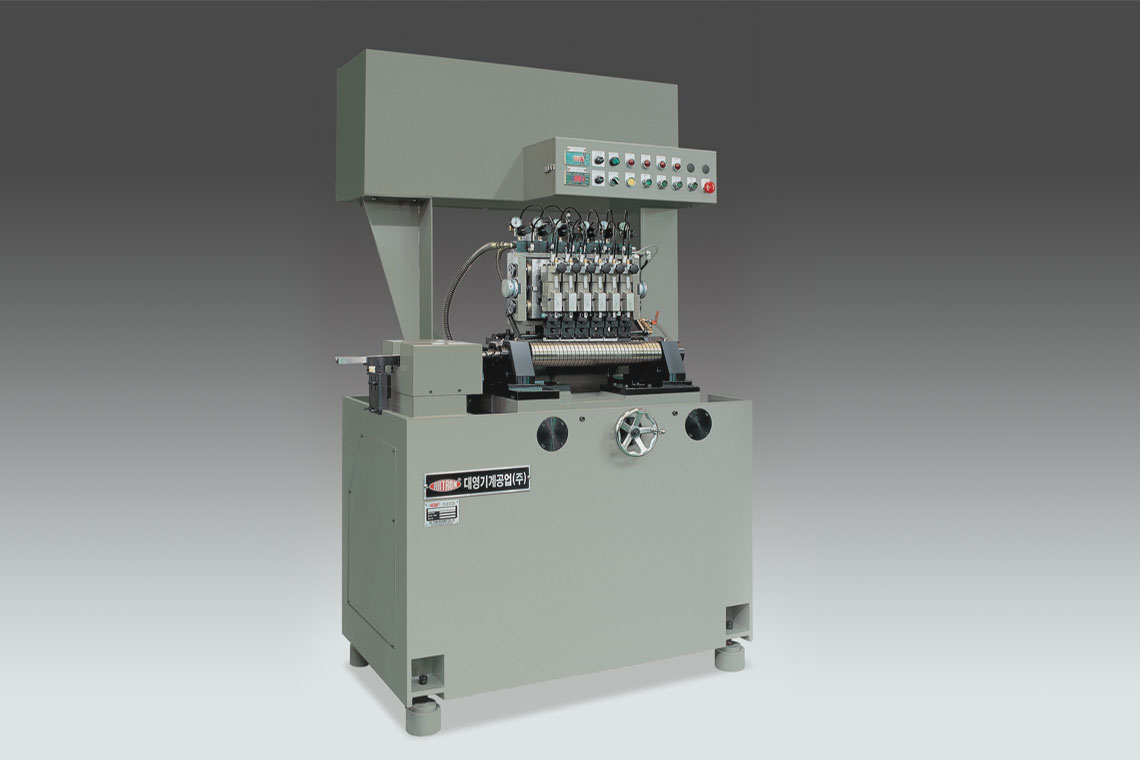

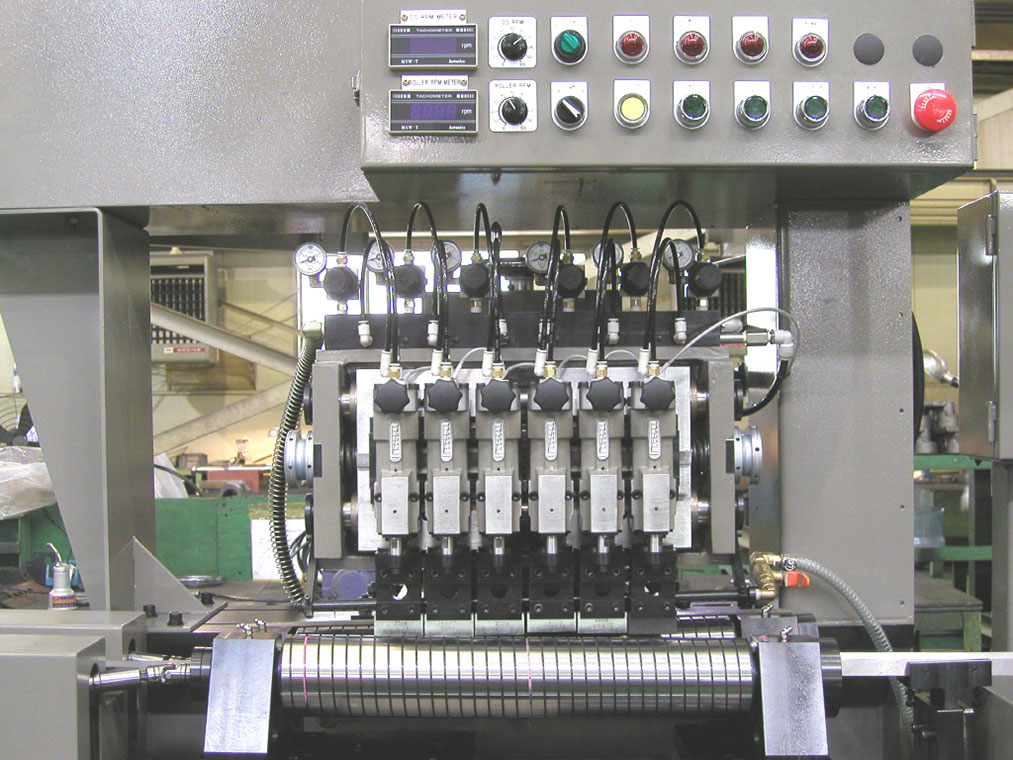

DSF-500

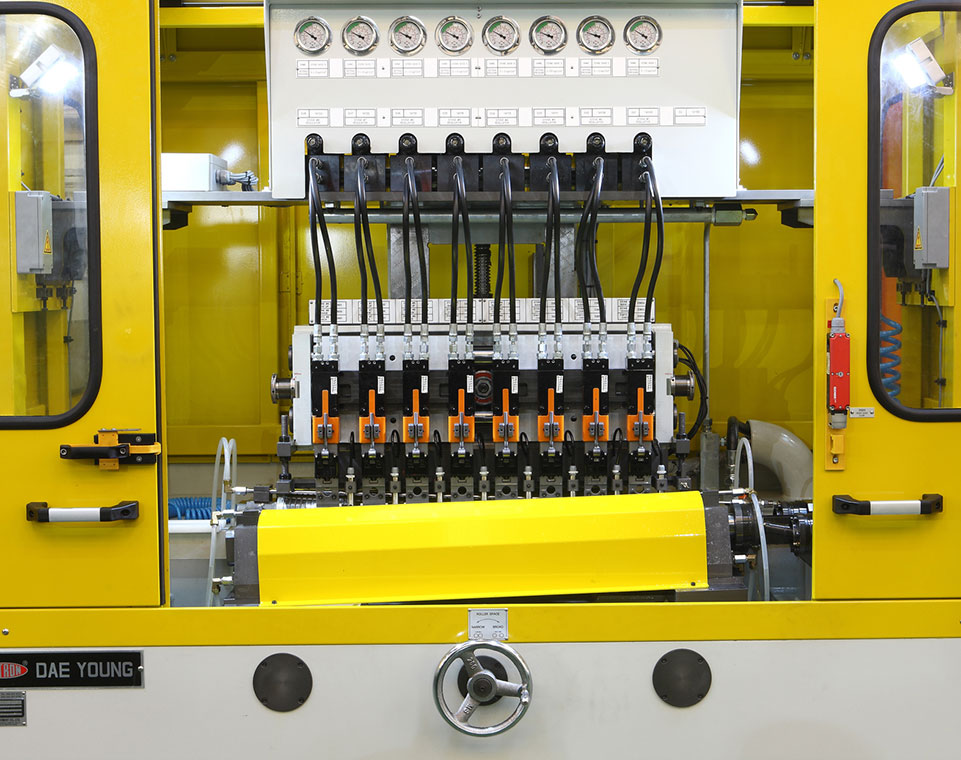

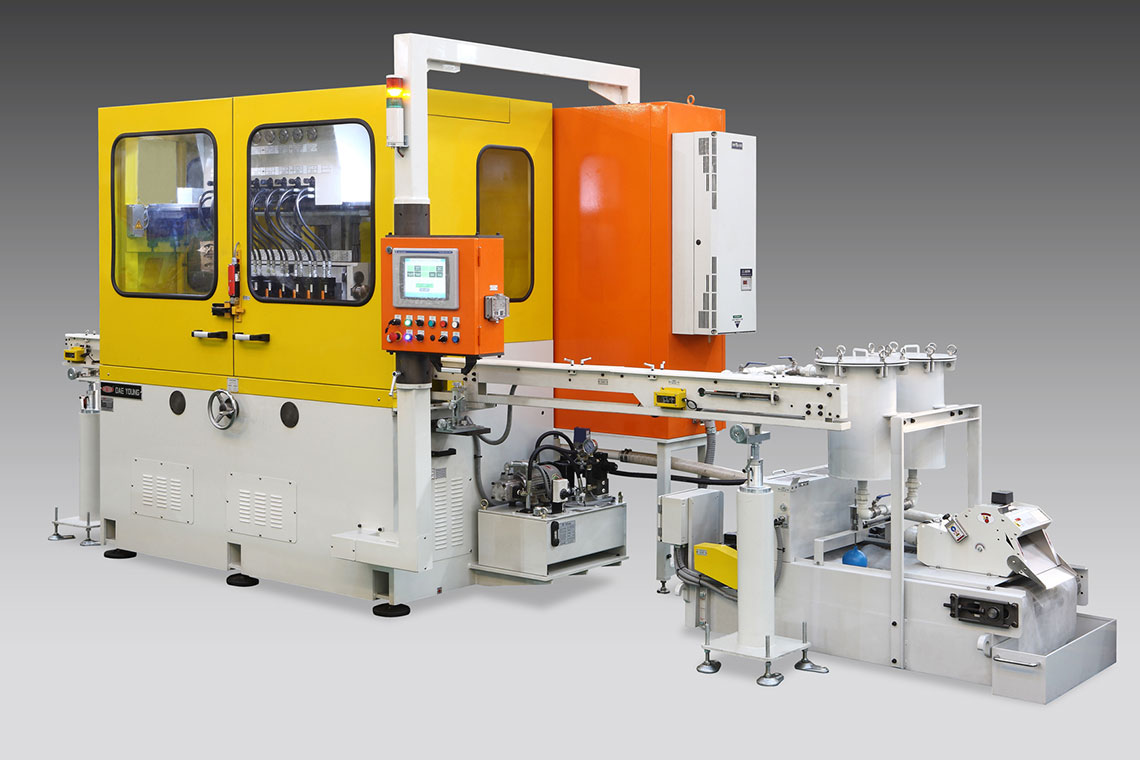

DSF-900
Division | Item | DSF-500 | DSF-900 |
---|---|---|---|
Workpieces | OD (mm) | Ø8 ~ Ø40 | Ø8 ~ Ø40 |
Length (mm) | 100 ~ 640 | 100 ~ 640 | |
Ra(㎛) | 0.05 | 0.05 | |
Facilities | Stone Guide Type | Air Type | Hydraulic Type |
Coolant Oil | Non-soluble oil | Non-soluble oil | |
Oscillation | Type | Motor | Motor |
Support | Air Bearing | Ball Strocke | |
Stroke (mm) | 1 (1.5, 2) | 1 (1.5, 2) | |
FPM | 1100 ~ 2500 | 450 ~ 2500 | |
Roller | OD (mm) | 90 | 125 |
Length (mm) | 500 | 900 | |
Traversing angle(°) | 1 | 2 | |
RPM | 100 ~ 400 | 100 ~ 450 |
